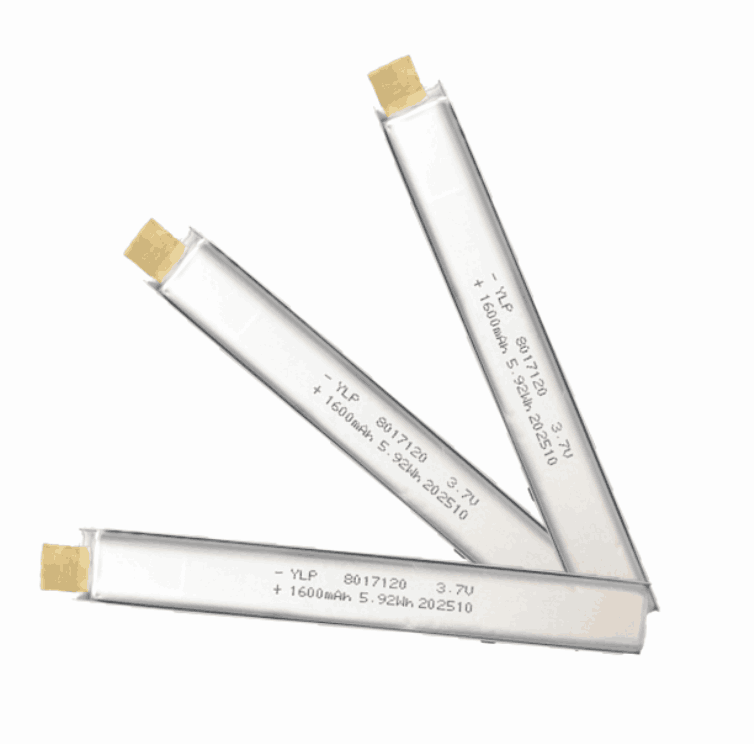

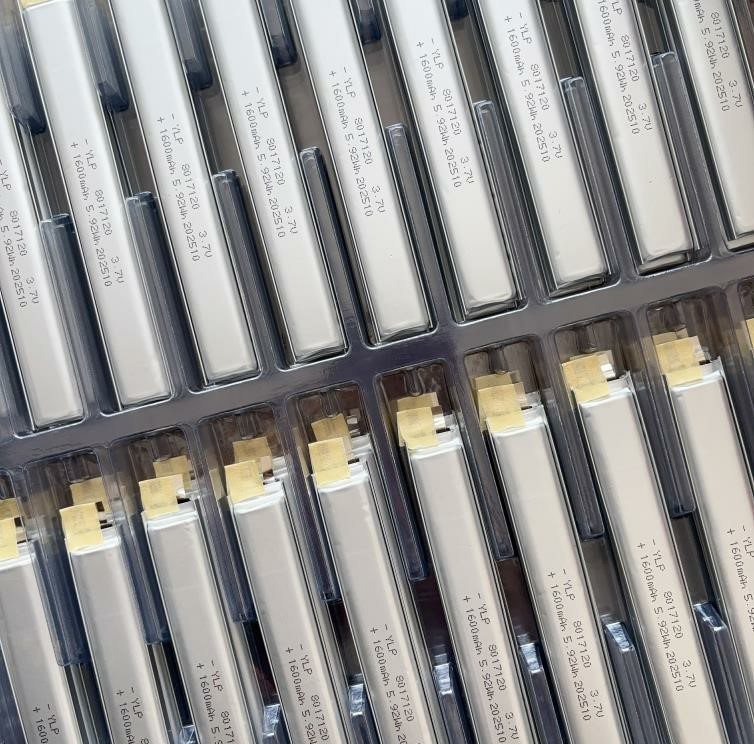

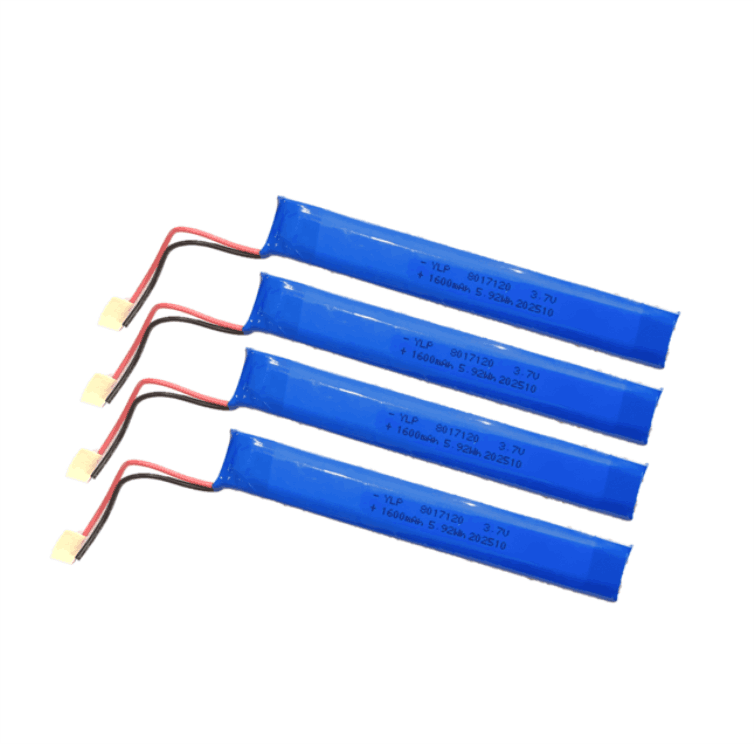

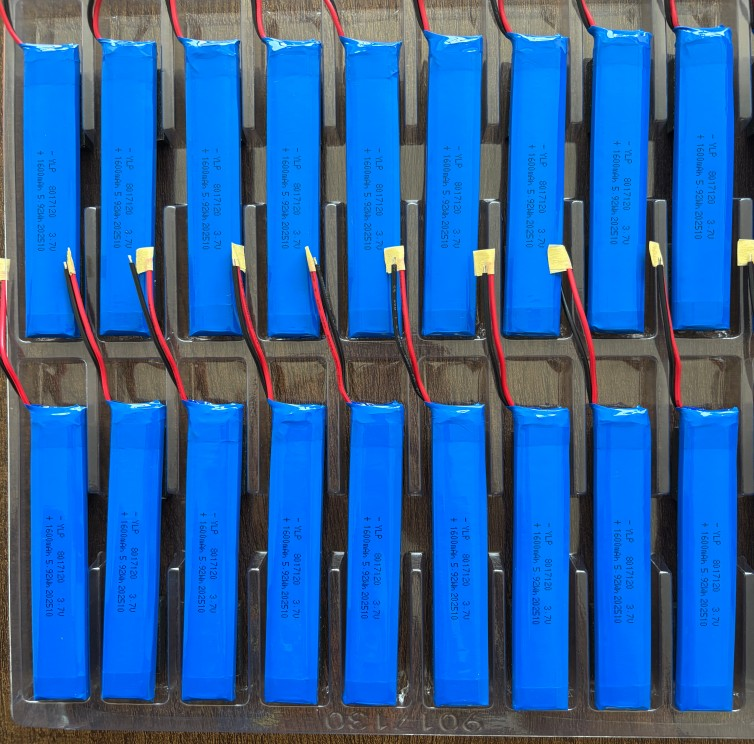

Manufacturer 8017120 Long-Strip Li-Battery, 1600mAh 3.7V | Reading Pens/Light Strips/Mirrors/Wardrobes

The 1600mAh long-bar lithium battery solution with stable 3.7V output is suitable for pen-type devices such as reading pens and styluses. The linear 8017120 structure is specially designed for wardrobe lights, motion-sensor lights, and LED light strips, and can be seamlessly integrated into scenarios like display cabinet lights and smart wardrobes, while also catering to the portable power supply needs of massagers and makeup mirrors.

Features of Manufacturer 8017120 Long-Strip Li-Battery, 1600mAh 3.7V | Reading Pens/Light Strips/Mirrors/Wardrobes

- Long-strip design supporting seamless embedded installation

- Portable power supply for lightweight battery life needs

- CB, CE, UL, KC, UN38.3, MSDS certified.


Specification of Manufacturer 8017120 Long-Strip Li-Battery, 1600mAh 3.7V | Reading Pens/Light Strips/Mirrors/Wardrobes

- Norminal voltage: 3.7V

- Capacity: 1600mah

- Charging current: 0.2C

- Discharge current: 1C

- Max size: 8*17*120(mm)

- Cycle life: 500cycles


Product NumberManufacturer 8017120 Long-Strip Li-Battery, 1600mAh 3.7V | Reading Pens/Light Strips/Mirrors/Wardrobes
MAIN PARAMETER
Nominal Capacity1600mAh
Nominal volrage3.7V
Max Charge Voltage4.2V
Discharge cut-off voltage2.75V
Charging Current0.2C
Max. Continuous Discharging Current0.5C
Cycle Life500 cycles
Dimensions (T*W*H)8*17*120(mm)
Weight27g
OTHERS
Operating TemperatureCharging: 0~45℃/Discharging:-20 ~60℃
Storage Temperature-10 ~ 45℃
Humidity8% to 90% relative humidity
ProtectionOver-discharge protection,over-charge protection,over-current protection,short-circuit protection, etc.
Delivery period7-21 days, depending on stock and quantity.
Applications
Reading Pens, Stylus Pens, Massagers, Wardrobe Lights, Motion Sensor Lights, LED Lights, Display Cabinet Lights, Light Strips, Makeup Mirrors, Smart Wardrobes, Under-Cabinet Lighting, USB Lamps
