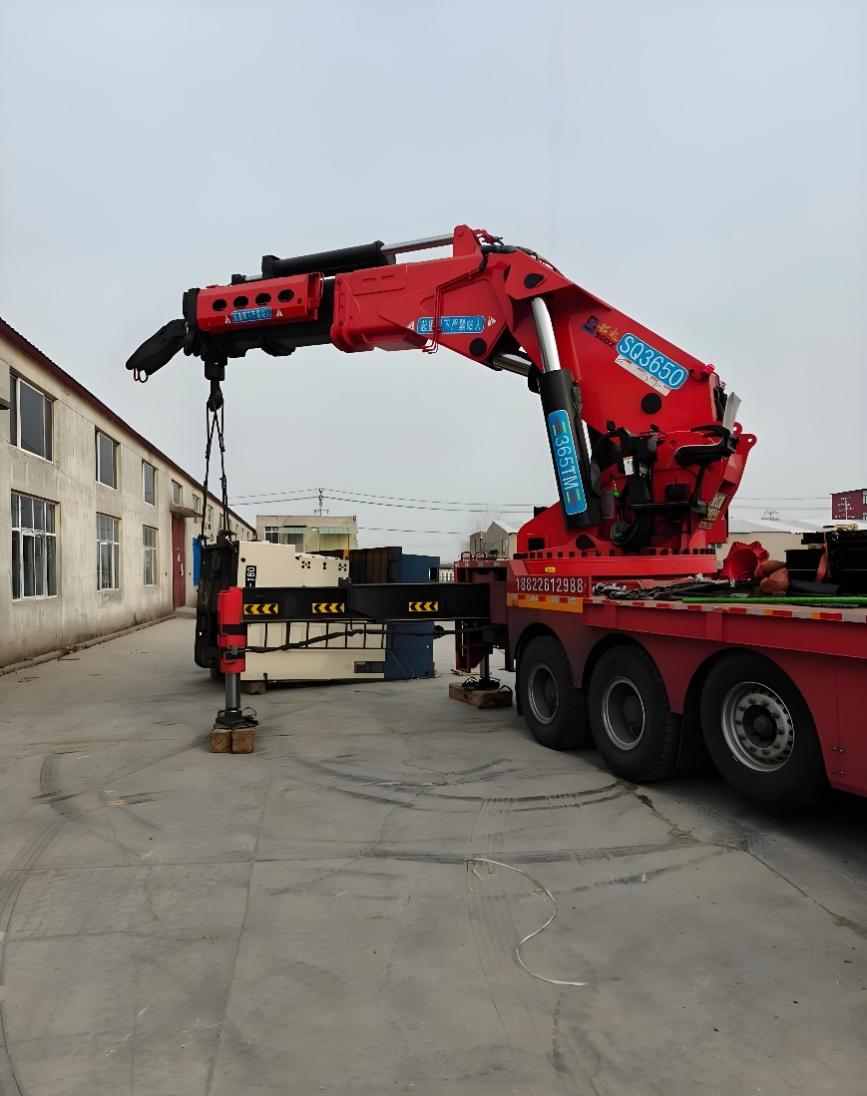

In heavy industrial environments, crane operation efficiency and on-site worker safety are non-negotiable priorities. Traditionally, overhead cranes and gantry cranes required operators to sit inside an elevated cab with a restricted field of view, or rely on a second ground assistant to relay hand commands. This dual-person communication method not only complicates logistics and slows down workflows, but also drastically escalates operational overhead and workplace injury risks.

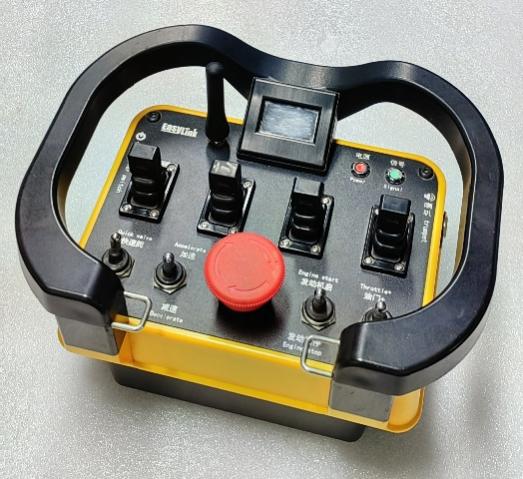

To address this industry bottleneck, Yilai Power collaborated with a leading industrial automation OEM to engineer a robust wireless crane remote control solution. This smart system allows a single operator to command complex material handling tasks from a safe distance on the ground, ensuring clear visual alignment with the cargo.
The core enabler of this rugged wireless system? A high-reliability custom 18650 lithium-ion battery pack engineered to withstand harsh factory floors.
Wireless industrial crane remote controls require a highly predictable, long-lasting, and lightweight energy source. Unlike consumer electronics, these devices operate continuously in high-vibration environments and under fluctuating outdoor temperatures.
After a rigorous collaborative engineering assessment, the project teams bypassed alternative form factors to deploy a specialized 2S1P (2 Cells in Series, 1 in Parallel) 18650 battery pack.
Voltage Alignment: The 7.4V nominal output provides the perfect voltage matching threshold for the remote control’s internal RF transmitters and main PCB board without causing efficiency losses during step-down conversion.
Ergonomics & Weight: When evaluating 21700 vs 18650 batteries for handheld industrial gear, the 18650 format offers a distinct spatial advantage. It keeps the remote control lightweight and compact, minimizing operator hand fatigue during 8-hour shifts.
Cost-Efficient Longevity: Utilizing a premium 2500mAh cylindrical cell ensures the system achieves a balanced total cost of ownership (TCO) with reliable mass-production supply stability.
To ensure full technical transparency for system integrators, the table below outlines the strict electrical and mechanical parameters of the Yilai Power 2S1P 18650 battery module:

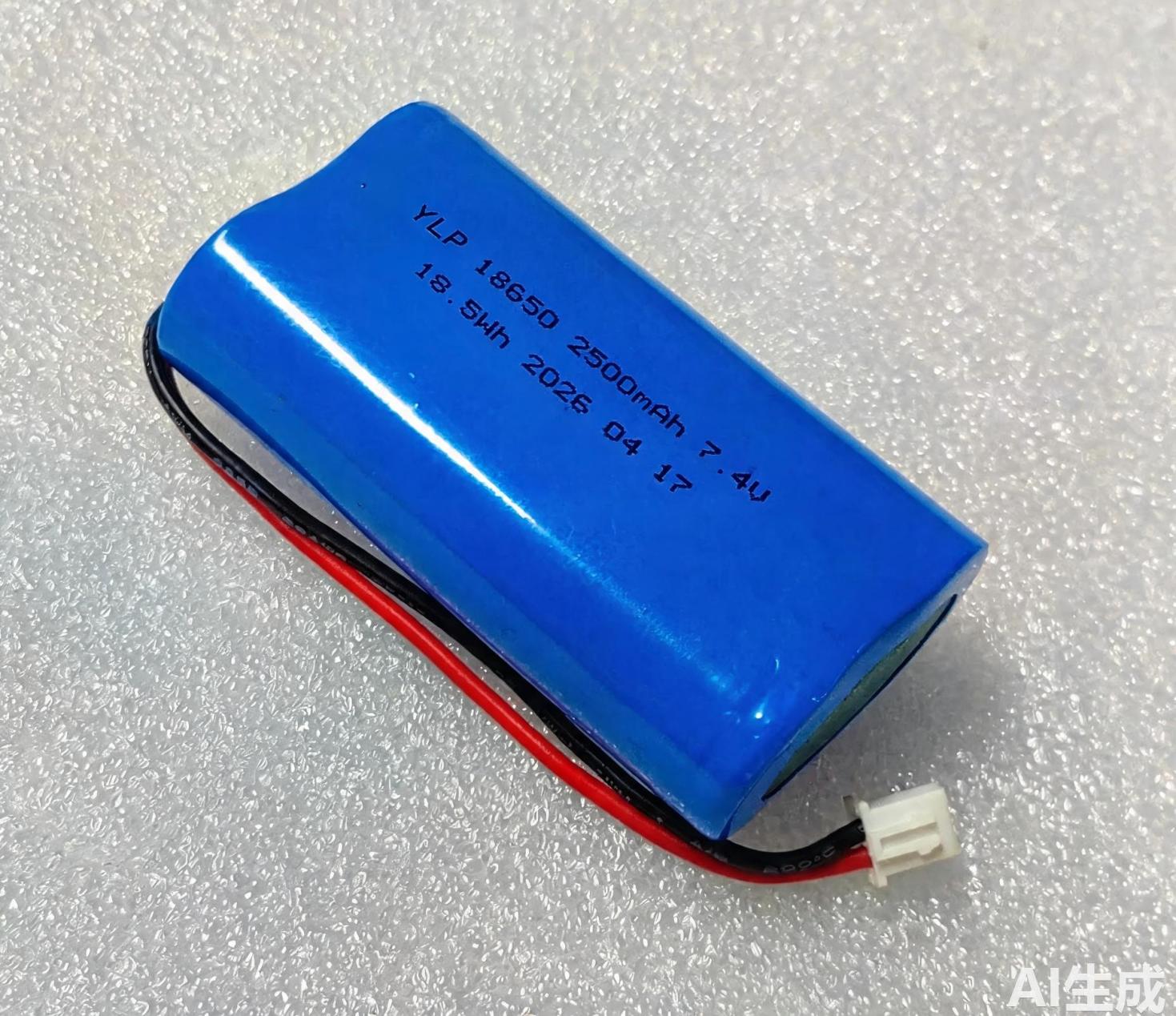

Parameter Dimension | Engineering Specification | Design & Sourcing Advantages |
Battery Configuration | 2S1P (Two 18650 cells in series) | Standardized form factor with a simplified, reliable internal layout. |
Nominal Voltage | 7.4V (Fully charged at 8.4V) | Guarantees stable radio frequency (RF) transmission signal strength. |
Rated Capacity | 2500 mAh | Delivers extended continuous uptime for consecutive industrial shifts. |
Total Energy | 18.5 Wh | Complies perfectly with international passenger and cargo air freight limits. |
Integrated Protection | Custom PCM (Protection Circuit Module) | Eliminates the common debate of is a BMS necessary by embedding overcharge, over-discharge, and short-circuit protection directly into the pack. |

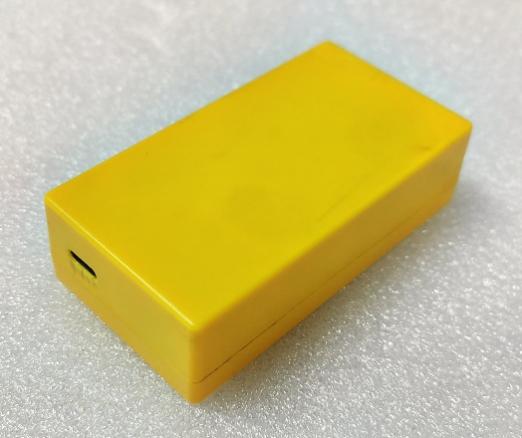

Enclosure Material | Heavy-Duty ABS plastic housing | Sealed via high-precision ultrasonic welding for premium IP-rated dust and moisture resistance. |
Output Interface | Industrial-grade JST/Molex connector | Ensures low contact resistance and quick, vibration-proof terminal engagement. |

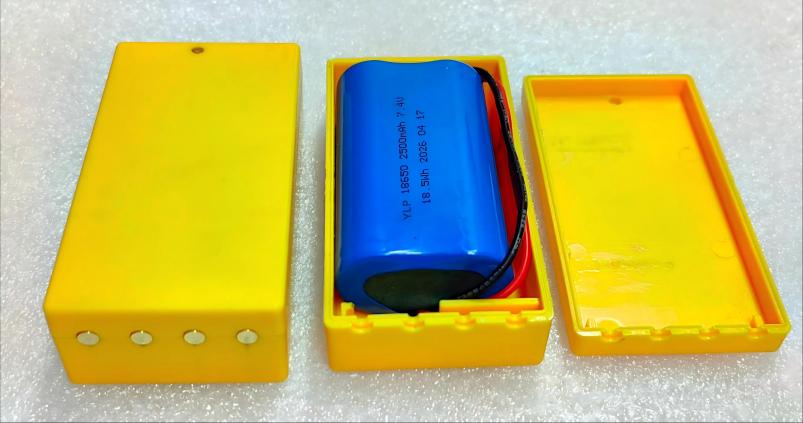

Advanced Mechanical Integration: Sealed Ultrasonic Housing
Industrial crane environments expose components to pervasive iron dust, humidity, and accidental concrete drops. To safeguard the 3.7V nominal lithium-ion cells inside, the battery pack is encapsulated within a custom-molded plastic shell.
Yilai Power utilizes advanced ultrasonic welding technology to hermetically seal the housing joints. This creates a highly resilient barrier against external debris and prevents moisture from compromising the internal PCM circuit.

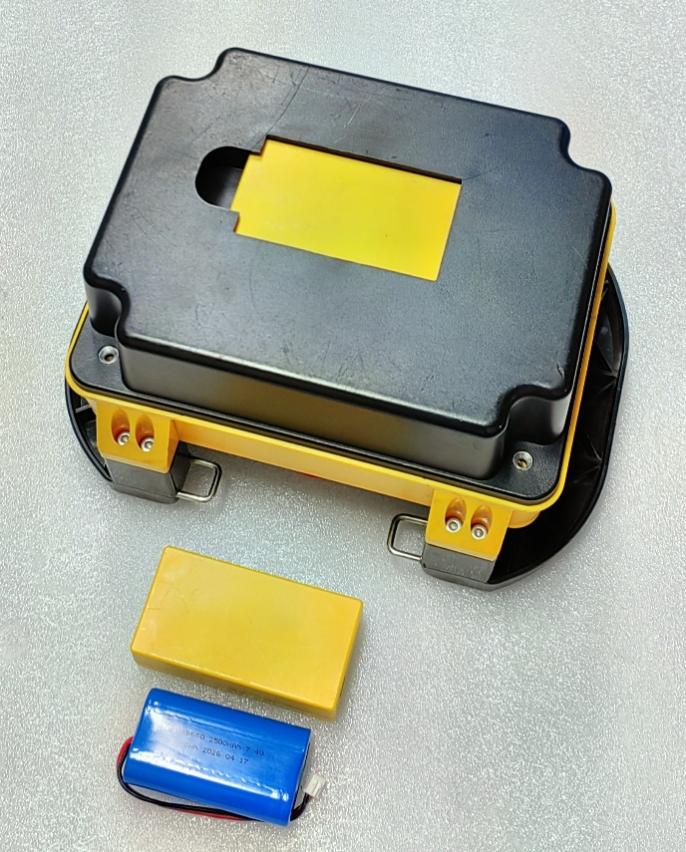

Furthermore, the mechanical interface features a toolless, ergonomic slide-and-lock clip design. End-users can easily hot-swap the depleted battery pack within seconds on the factory floor, minimizing system downtime and keeping overhead crane operations flowing seamlessly.
To assist procurement managers and automation engineers, we have compiled the most common questions regarding industrial-grade 18650 battery integrations:
Answer: In heavy industrial environments, safety is paramount. Crane remote controls are subjected to frequent charging cycles and continuous vibrations. An integrated PCM (Protection Circuit Module) is essential because it monitors each individual cell string to block over-charging, over-discharging, and external short circuits. Without this built-in protection, cells face the threat of thermal runaway, which could lead to critical equipment failure on the factory floor.
Answer: Extreme temperatures directly impact the chemical mobility of lithium ions. In freezing winter conditions (-10°C or lower), standard cells experience temporary capacity drops and voltage sagging, which can shorten the remote control's runtime. Yilai Power remedies this by sourcing wide-temperature industrial cells and designing thick, insulated ABS enclosures to stabilize internal temperatures during harsh outdoor crane operations.
Answer: Under standard industrial charging protocols (0.5C charge/discharge rates at room temperature), a premium 2S1P 18650 pack retains over 80% of its initial rated capacity after 500 to 800 full cycles. For typical crane remote control systems, this translates to roughly 2 to 3 years of reliable service before requiring a drop-in replacement pack.
Answer: While upgrading to a 21700 cell layout would expand the pack's capacity from 2500mAh to up to 5000mAh, it is rarely feasible for legacy designs. A 21700 cell is physically 3mm wider and 5mm longer than a 18650 cell. Consequently, an upgrade would require a complete redesign and expensive re-tooling of the remote control's plastic battery compartment and internal contact architecture.
Whether you are designing a wireless crane control system, an AMR/AGV robotic terminal, or low-power industrial telemetry devices, choosing a reliable 3.7V cell manufacturer makes all the difference.
Yilai Power provides factory-direct wholesale pricing, full batch traceability, and custom series/parallel engineering configurations tailored to your exact physical space constraints.
Contact our engineering team today to request detailed technical drawings, PCM schematic designs, or a factory-direct wholesale quote for your custom project.
